Union Audio is a handmade analog audio design company founded by legendary DJ mixer designer Andy Rigby-Jones.
Characterized by uncompromising analog mixer design and product manufacturing, with clubs, professional DJs, and live producers in mind, the company has collaborated with companies such as PLAYdifferently and MasterSounds Audio, and now develops its own product line.

Its greatest features are its exceptional sound quality, intuitive operation, integrated DSP FX unit, and powerful 4-band isolator.

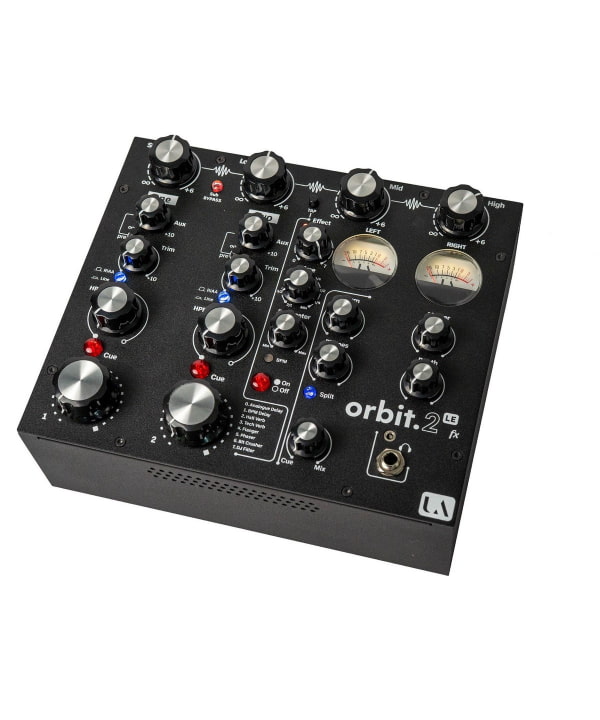

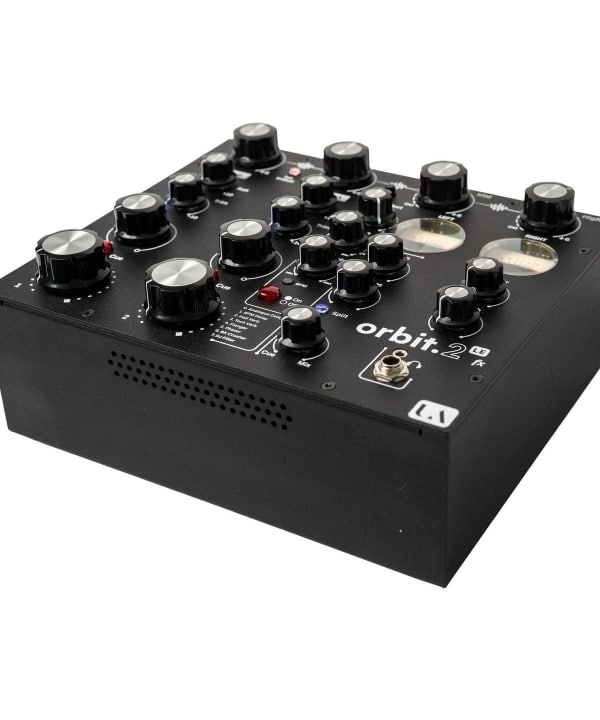

It features two completely independent channels, each equipped with high-quality phono and line inputs, a high-pass filter with variable Q, and a precision Alps rotary fader.
The integrated FX unit, a unique feature, includes eight carefully selected effects. Delay 2 features automatic BPM detection, but you can also manually set the beat timing using the tap tempo button.

The ON/OFF push button allows for seamless activation of effects and can be switched between latched (pressed down) and momentary (pressed down only) effects, maximizing your creativity.
Furthermore, it's possible to connect to external effects units, allowing for more advanced audio manipulation by using built-in and external effects simultaneously.

【Major features】
• Classic Analog Warmth: Rich and warm sound thanks to high-quality analog circuitry.
• Integrated FX Unit: A variety of built-in effects that are easy to operate with an intuitive layout.
• Versatile connectivity: Each channel features dual phono/line inputs, supporting a wide range of audio sources.
• 4-band isolator: Allows boosting from full cut to +6 dB in each band, and is switchable between 3-band and 4-band modes (crossover setting from 110 Hz to 3 kHz).

【specification】
Distortion and noise (THD+N unweighted): 0 dBu, 20 Hz to 20 kHz, line input to mixed output +4 dBu 0.005%
• Frequency response: Line input to mixed output ±2 dB (20 Hz to 100 kHz), RIAA accuracy ±1 dB (20 Hz to 20 kHz)
• Shut-off and crosstalk: Fader shut-off > -80 dB, L/R crosstalk (line input to mix output, 1 kHz) < -75 dB
• Noise (22 Hz–22 kHz unweighted): Residual mix output noise < -90 dBu, line input to mix output (unity gain) < -85 dBu, maximum output level (mix output, at 0.5% THD) +27 dBu, dynamic range 117 dB
• EQ and filter frequencies: Channel high-pass filter (clockwise maximum) -3 dB / 1500 Hz, Master 3-band isolator 200 Hz, 800 Hz, 2000 Hz
• Headphone amplifier: Maximum output level 750 mW RMS (33 Ω)
• Power supply: Type External switching power supply (SMPSU), Input voltage range 90-260 VAC, Output 18 V DC / 30 W, Efficiency LEVEL VI
Dimensions: (Height x Width x Depth) 195 mm x 230 mm x 88 mm, Weight 2.75 kg

Warranty period: 2 years
